Home 2025 Mazda 3 2.5 Turbo Premium Plus 2.5L L4 - Gas Suspension Components

Suspension Components for 2025 Mazda 3

Vehicle

2025 Mazda 3

Change Vehicle

Categories

Suspension
Suspension
Browse Categories

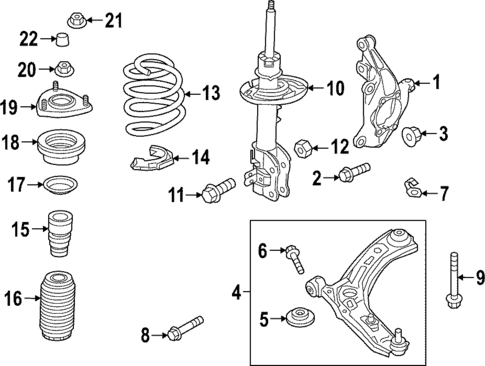

Suspension Components for 2025 Mazda 3 #0 Suspension Components for 2025 Mazda 3 #1 Suspension Components for 2025 Mazda 3 #2 Suspension Components for 2025 Mazda 3 #3
Suspension Components for 2025 Mazda 3 #0
1
10
11
13
14
16
17
19
2
21
22
3
4
9
No.
Part # / Description / Price
Price
1
BDHW33031 - Suspension: Knuckle for Mazda: 3 Image
Knuckle
BDHW33031
Mazda Mazda
Positions: Left
Description: Japan built, with turbo.
$425.90 CAD
$425.90 CAD
1
BDHW33021 - Suspension: Knuckle for Mazda: 3 Image
Knuckle
BDHW33021
Mazda Mazda
Positions: Right
Description: Japan built, with turbo.
$425.90 CAD
$425.90 CAD
2
9YA02101H - Suspension: Knuckle Mount Bolt for Mazda: 3, 6, CX-3, CX-30, CX-9, MX-30 EV Image
Lower Control Arm Mount Bolt
9YA0-21-01H
Mazda Mazda
Positions: Left
Description: Japan built. Lower.
$6.20 CAD
$6.20 CAD
3
9YB041031 - Suspension: Knuckle Nut for Mazda: 3, 6, CX-3, CX-30, CX-5, CX-50, CX-70, CX-9, CX-90, MX-30 EV Image
Stabilizer Link Nut
9YB0-41-031
Mazda Mazda
Positions: Left
Description: Japan built. Mexico built. Lower. 2.5L turbo. Without awd. Upper. Fwd. 2.2L diesel.
$1.79 CAD
$1.79 CAD
4
BDNG34350 - Suspension: Lower Control Arm for Mazda: 3 Image
Lower Control Arm
BDNG34350
Mazda Mazda
Positions: Left
Description: Mazda3. Left. Mexico built. Awd. With turbo.
$331.15 CAD
$331.15 CAD
4
BDNG34300 - Suspension: Lower Control Arm for Mazda: 3 Image
Lower Control Arm
BDNG34300
Mazda Mazda
Positions: Right
Description: Mazda3. Right. Mexico built. Awd. With turbo.
$331.15 CAD
$331.15 CAD
9
9YA011402A - Suspension: Lower Control Arm Rear Bolt for Mazda: 3, 6, CX-3, CX-30, CX-5, CX-9 Image
Lower Control Arm Rear Bolt
9YA0-11-402A
Mazda Mazda
Positions: Left
Description: Japan built. Outer. 2.5L turbo. 2.2L diesel.
$18.70 CAD
$18.70 CAD
10
BFWM3470XA - Suspension: Strut for Mazda: 3 Image
Strut
BFWM3470XA
Mazda Mazda
Positions: Right
Notes: PARTS: Order by marks on spring, or spring code. Part has related components that cannot be reused/reinstalled; bolt, nut and top nut.
Description: Mazda3. Right. Japan built. With turbo.
$264.50 CAD
$264.50 CAD
10
BFWM3490XA - Suspension: Strut for Mazda: 3 Image
Strut
BFWM3490XA
Mazda Mazda
Positions: Left
Notes: PARTS: Order by marks on spring, or spring code. Part has related components that cannot be reused/reinstalled; bolt, nut and top nut.
Description: Mazda3. Left. Japan built. With turbo.
$264.50 CAD
$264.50 CAD
11
9YA02124F - Suspension: Strut Bolt for Mazda: 3, CX-30, CX-70, CX-90 Image
Strut Bolt
9YA0-21-24F
Mazda Mazda
Positions: Right
Notes: PARTS: Part cannot be reused/reinstalled.
Description: Mexico built. Japan built. Upper.
$8.75 CAD
$8.75 CAD
13
BFWV34011 - Suspension: Spring for Mazda: 3 Image
Coil Spring
BFWV34011
Mazda Mazda
Positions: Right
Notes: PARTS: Order by marks on spring, or spring code. Part has related components that cannot be reused/reinstalled; bolt, nut and top nut.
Description: Japan built, code 7. Exc.Mexico Built. Blue Mark.
$154.99 CAD
$154.99 CAD
13
BFWN34011 - Suspension: Spring for Mazda: 3 Image
Coil Spring
BFWN34011
Mazda Mazda
Positions: Right
Notes: PARTS: Order by marks on spring, or spring code. Part has related components that cannot be reused/reinstalled; bolt, nut and top nut.
Description: Mazda3. Orange mark. Japan built, code 2. Exc.Mexico Built. Marked Pink.
$136.18 CAD
$136.18 CAD
13
BFWP34011 - Suspension: Spring for Mazda: 3 Image
Coil Spring
BFWP34011
Mazda Mazda
Positions: Left
Notes: PARTS: Order by marks on spring, or spring code. Part has related components that cannot be reused/reinstalled; bolt, nut and top nut.
Description: Mazda3. Red mark. Japan built, code 3. Exc.Mexico Built. Marked Light Green.
$138.14 CAD
$138.14 CAD
13
BFWR34011 - Suspension: Spring for Mazda: 3 Image
Coil Spring
BFWR34011
Mazda Mazda
Positions: Left
Notes: PARTS: Order by marks on spring, or spring code. Part has related components that cannot be reused/reinstalled; bolt, nut and top nut.
Description: Mazda3. White mark. Japan built, code 4. Exc.Mexico Built. Marked Purple.
$141.03 CAD
$141.03 CAD
13
BFWS34011 - Suspension: Spring for Mazda: 3 Image
Coil Spring
BFWS34011
Mazda Mazda
Positions: Left
Notes: PARTS: Order by marks on spring, or spring code. Part has related components that cannot be reused/reinstalled; bolt, nut and top nut.
Description: Japan built, code 5. Exc.Mexico Built. Marked Light Blue.
$144.74 CAD
$144.74 CAD
13
BFWT34011 - Suspension: Spring for Mazda: 3 Image
Coil Spring
BFWT34011
Mazda Mazda
Positions: Left
Notes: PARTS: Order by marks on spring, or spring code. Part has related components that cannot be reused/reinstalled; bolt, nut and top nut.
Description: Japan built, code 6. Exc.Mexico Built. Marked Red.
$148.40 CAD
$148.40 CAD
13
BFWW34011 - Suspension: Spring for Mazda: 3 Image
Coil Spring
BFWW34011
Mazda Mazda
Positions: Left
Notes: PARTS: Order by marks on spring, or spring code. Part has related components that cannot be reused/reinstalled; bolt, nut and top nut.
Description: Japan built, code 8. Exc.Mexico Built. Marked Green.
$158.13 CAD
$158.13 CAD
13
BFWM34011 - Suspension: Spring for Mazda: 3 Image
Coil Spring
BFWM34011
Mazda Mazda
Positions: Right
Notes: PARTS: Order by marks on spring, or spring code. Part has related components that cannot be reused/reinstalled; bolt, nut and top nut.
Description: Mazda3. Dark blue mark. Japan built, code 1. Exc.Mexico Built. Marked White.
$143.21 CAD
$143.21 CAD
13
BGAA34011 - Suspension: Spring for Mazda: 3 Image
Coil Spring
BGAA34011
Mazda Mazda
Positions: Left
Notes: PARTS: Order by marks on spring, or spring code. Part has related components that cannot be reused/reinstalled; bolt, nut and top nut.
Description: Mazda3. Yellow mark. Japan built, code 9. Exc.Mexico Built. Marked Gray.
$162.09 CAD
$162.09 CAD
14
BDTS340A3 - Suspension: Lower Seat for Mazda: 3, CX-30 Image
Lower Seat
BDTS-34-0A3
Mazda Mazda
Positions: Right
Description: Japan built. Mexico built. Mazda3. Lower. CX-30.
$17.64 CAD
$17.64 CAD
16
BDTS34015 - Suspension: Dust Cover for Mazda: 3, CX-30 Image
Dust Cover
BDTS-34-015
Mazda Mazda
Positions: Right
Description: Mexico built. Mazda3. CX-30.
$29.31 CAD
$29.31 CAD
17
BDTS34012 - Suspension: Upper Seat for Mazda: 3, CX-30 Image
Upper Seat
BDTS-34-012
Mazda Mazda
Positions: Right
Description: Mexico built. Mazda3. Upper. CX-30.
$26.04 CAD
$26.04 CAD
19
BCKE34380C - Suspension: Strut Mount for Mazda: 3 Image
Strut Mount
BCKE34380C
Mazda Mazda
Positions: Left
Description: Japan built. Mazda3.
$60.58 CAD
$60.58 CAD
21
9YB101211 - Suspension: Top Nut for Mazda: 3, CX-30, CX-50, MX-30 EV Image
Top Nut
9YB1-01-211
Mazda Mazda
Positions: Left
Notes: PARTS: Part cannot be reused/reinstalled.
Description: Mexico built.
$7.23 CAD
$7.23 CAD
22
BBP334019A - Suspension: Top Cap for Mazda: 2, 3, 6, CX-3, CX-30, CX-5, CX-50, CX-70, CX-90, MX-30 EV Image
Top Nut Cap
BBP3-34-019A
Mazda Mazda
Positions: Left
Description: Japan built. Mexico built.
$1.81 CAD
$1.81 CAD
No.
Part # / Description / Price
Price
1
BGCE3303Y - Suspension: Knuckle for Mazda: 3 Image
Knuckle
BGCE3303Y
Mazda Mazda
Positions: Left
Description: Mazda3. With turbo.
$351.69 CAD
$351.69 CAD
1
BGCE3302Y - Suspension: Knuckle for Mazda: 3 Image
Knuckle
BGCE3302Y
Mazda Mazda
Positions: Right
Description: Mazda3. With turbo.
$351.69 CAD
$351.69 CAD
4
BDTS34350F - Suspension: Lower Control Arm for Mazda: 3 Image
Lower Control Arm
BDTS-34-350F
Mazda Mazda
Positions: Left
Description: Mazda3. Left. Mexico built. Fwd. Awd. Without turbo.
$268.93 CAD
$268.93 CAD
4
BDTS34300F - Suspension: Lower Control Arm for Mazda: 3 Image
Lower Control Arm
BDTS-34-300F
Mazda Mazda
Positions: Right
Description: Mazda3. Right. Mexico built. Fwd. Awd. Without turbo.
$278.91 CAD
$278.91 CAD
8
9YA02A422 - Suspension: Lower Control Arm Front Bolt for Mazda: 3, CX-3, CX-30, CX-70, CX-90 Image
Lower Control Arm Front Bolt
9YA0-2A-422
Mazda Mazda
Positions: Right
Description: Japan built. #1.
$9.11 CAD
$9.11 CAD
10
BDTS3470XN - Suspension: Strut for Mazda: 3 Image
Strut
BDTS3470XN
Mazda Mazda
Positions: Right
Notes: PARTS: Order by marks on spring.
Description: Mazda3. Right. Mexico built. Without turbo. With cyl deactivation.
$230.02 CAD
$230.02 CAD
10
BDTS3490XN - Suspension: Strut for Mazda: 3 Image
Strut
BDTS3490XN
Mazda Mazda
Positions: Left
Notes: PARTS: Order by marks on spring.
Description: Mazda3. Left. Mexico built. Japan built. Without turbo. With cyl deactivation.
$171.45 CAD
$171.45 CAD
11
9YA02124F - Suspension: Strut Bolt for Mazda: 3, CX-30, CX-70, CX-90 Image
Strut Bolt
9YA0-21-24F
Mazda Mazda
Positions: Left
Description: Mexico built. Japan built. Upper.
$8.75 CAD
$8.75 CAD
12
9YB101212 - Suspension: Strut Nut for Mazda: 3, CX-30 Image
Strut Nut
9YB1-01-212
Mazda Mazda
Positions: Left
Description: Japan built. Upper.
$6.10 CAD
$6.10 CAD
13
BGCP34011 - Suspension: Spring for Mazda: 3 Image
Spring
BGCP34011
Mazda Mazda
Positions: Left
Notes: PARTS: Order by marks on spring.
Description: Mexico built, type 8.
View Details
View Details
13
BGCN34011 - Suspension: Spring for Mazda: 3 Image
Spring
BGCN34011
Mazda Mazda
Positions: Left
Notes: PARTS: Order by marks on spring.
Description: Mexico built, type 7.
$68.09 CAD
$68.09 CAD
13
BGCK34011 - Suspension: Spring for Mazda: 3 Image
Spring
BGCK-34-011
Mazda Mazda
Positions: Right
Notes: PARTS: Order by marks on spring.
Description: Mexico built, type 6.
$65.35 CAD
$65.35 CAD
13
BGCJ34011 - Suspension: Spring for Mazda: 3 Image
Coil Spring
BGCJ34011
Mazda Mazda
Positions: Right
Notes: PARTS: Order by marks on spring.
Description: Mazda3. Mexico built. Yellow mark.
$63.65 CAD
$63.65 CAD
13
BGDJ34011 - Suspension: Spring for Mazda: 3 Image
Spring
BGDJ34011
Mazda Mazda
Positions: Right
Notes: PARTS: Order by marks on spring.
Description: Mexico built, type 9.
View Details
View Details
13
BGCF34011 - Suspension: Spring for Mazda: 3 Image
Coil Spring
BGCF34011
Mazda Mazda
Positions: Right
Notes: PARTS: Order by marks on spring.
Description: Mazda3. Mexico built. Orange mark.
View Details
View Details
13
BGCH34011 - Suspension: Spring for Mazda: 3 Image
Coil Spring
BGCH34011
Mazda Mazda
Positions: Right
Notes: PARTS: Order by marks on spring.
Description: Mazda3. Mexico built. White mark.
$62.00 CAD
$62.00 CAD
13
BGCG34011 - Suspension: Spring for Mazda: 3 Image
Coil Spring
BGCG34011
Mazda Mazda
Positions: Right
Notes: PARTS: Order by marks on spring.
Description: Mazda3. Mexico built. Red mark.
$60.31 CAD
$60.31 CAD
13
BGCE34011 - Suspension: Spring for Mazda: 3 Image
Coil Spring
BGCE34011
Mazda Mazda
Positions: Left
Notes: PARTS: Order by marks on spring.
Description: Mazda3. Mexico built. Dark blue mark.
View Details
View Details
15
DFR534111 - Suspension: Bumper for Mazda: 3, CX-30 Image
Strut Bumper
DFR5-34-111
Mazda Mazda
Positions: Right
Description: Mexico built. Mazda3. CX-30.
$21.05 CAD
$21.05 CAD
16
BDTS34015 - Suspension: Dust Cover for Mazda: 3, CX-30 Image
Dust Cover
BDTS-34-015
Mazda Mazda
Positions: Left
Description: Mexico built. Mazda3. CX-30.
$29.31 CAD
$29.31 CAD
17
BDTS34012 - Suspension: Upper Seat for Mazda: 3, CX-30 Image
Upper Seat
BDTS-34-012
Mazda Mazda
Positions: Left
Description: Mexico built. Mazda3. Upper. CX-30.
$26.04 CAD
$26.04 CAD
18
BCKE3438X - Suspension: Bearing for Mazda: 3, CX-30 Image
Strut Bearing
BCKE3438X
Mazda Mazda
Positions: Right
Description: Japan built. Mexico built. Mazda3. CX-30.
$105.30 CAD
$105.30 CAD
19
BDTS34380B - Suspension: Strut Mount for Mazda: 3, CX-30 Image
Strut Mount
BDTS34380B
Mazda Mazda
Positions: Right
Description: Mexico built. Mazda3. CX-30.
$95.98 CAD
$95.98 CAD
20
9YB041032 - Suspension: Strut Mount Nut for Mazda: 3, 6, CX-3, CX-30, CX-5, CX-50, CX-70, CX-9, CX-90, MX-30 EV, MX-5 Miata Image
Suspension Strut Mount Nut
9YB0-41-032
Mazda Mazda
Positions: Right
Description: Japan built. Awd. 2.5L turbo. 2.2L diesel.
$4.30 CAD
$4.30 CAD
22
BBP334019A - Suspension: Top Cap for Mazda: 2, 3, 6, CX-3, CX-30, CX-5, CX-50, CX-70, CX-90, MX-30 EV Image
Top Nut Cap
BBP3-34-019A
Mazda Mazda
Positions: Right
Description: Japan built. Mexico built.
$1.81 CAD
$1.81 CAD
No.
Part # / Description / Price
Price
4
9YA011401A - Suspension: Lower Control Arm Rear Bolt for Mazda: 3, 6, CX-3, CX-30, CX-5, CX-9 Image
Lower Control Arm Rear Bolt
9YA0-11-401A
Mazda Mazda
Positions: Right
View Details
View Details
No.
Part # / Description / Price
Price
4
9YA011401A - Suspension: Lower Control Arm Rear Bolt for Mazda: 3, 6, CX-3, CX-30, CX-5, CX-9 Image
Lower Control Arm Rear Bolt
9YA0-11-401A
Mazda Mazda
Positions: Right
View Details
View Details

Related Parts

Part # / Description / Price
Price
BDTT3302Y - Suspension: Steering Knuckle for Mazda: 3 Image
Steering Knuckle
BDTT3302Y
Mazda Mazda
Positions: Right
Description: Mazda3. Right. Without turbo.
$425.70 CAD
$425.70 CAD
BDTT3303Y - Suspension: Steering Knuckle for Mazda: 3 Image
Steering Knuckle
BDTT3303Y
Mazda Mazda
Positions: Left
Description: Mazda3. Left. Without turbo.
$425.70 CAD
$425.70 CAD
